Energy Meter

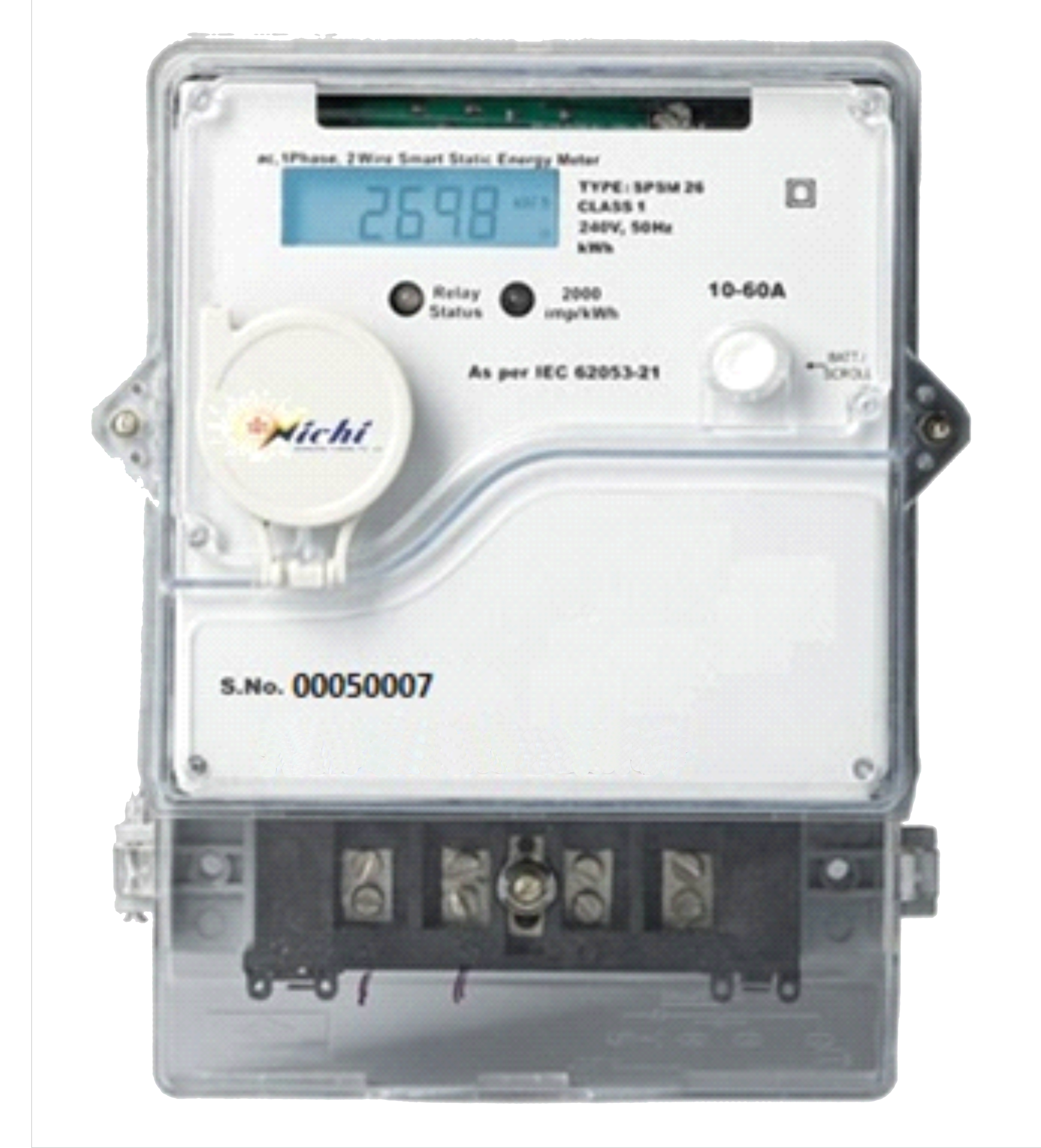

Single Phase Smart Meter
Confirms to : IS 16444:2015
Accuracy Class : Class 1.0
Reference Voltage : 240 Volt A/C
: 60% TO 120% VRef
Current Rating Ib : 5(30) A, 10(60) A
Frequency Range : 50 Hz ± 5 %
Power Factor Range : 0(lag)-UPF-0(lead)
Starting Current : 0.2% Ib Basic Current @240V
Meter Constant : 4000 Pulses/kWh : 2000 Pulses/kWhPower Consumption
: < 10W (in voltage circuit)
: <4 VA (in current circuit)
Display : Backlit LCD (dual 1 colour)
Working Temperature : - 25°C to 70°C
Range
Communication : GSM / RF / NB IoT
Plug and play module interface
Interface
Protected Class : IP51/IP54
Functions:
Measure Active /Reactive energy
Maximum Demand(MD) to know load consumption of consumer with selectable Demand integration period (DIP)
Load profile for 30/60days
Display Auto and Manual through push button.
Local data down load through CMRI
Different tampers detection and logging
Event logging
Optional features (on demand):
*AMR LoRa /GSM/NBIoT as per the demand.
*Neutral current measurement
* Display during Power off with Push Button (hands free operation)
* Magnet detection and logging
*DLMS /COSEM complaint
* Support for Head end system integration
* Meter Data Management on server

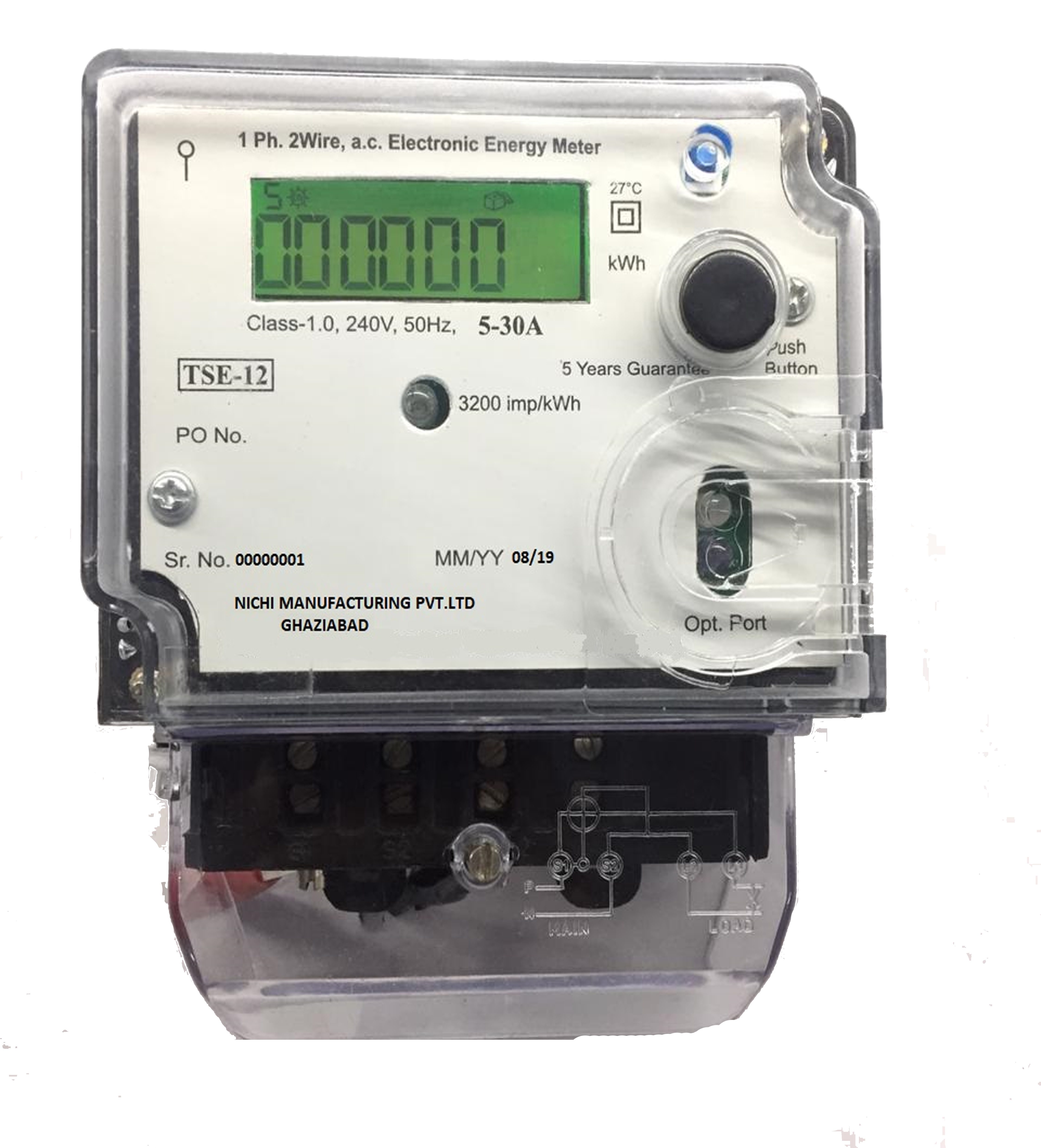

Single Phase DLMS Meter
Confirms to : IS 13779:1999 & IS 15959:2015
Accuracy Class : Class 1.0
Reference voltage : 240 Volt A/C 60% TO 120% VRef
Current Rating Ib : 5(30) A, 10(60) A
Frequency Range : 50 Hz ± 5 %
Power Factor Range : 0(lag)-UPF-0(lead)
Starting Current : 0.2% Ib Basic Current @240V
Meter Constant : 3200 Pulses /kWh
: 1600 Pulses /kWh
Power Consumption : < 1.0W/4VA (in voltage circuit)
< 1 VA (in current circuit)
Display : Backlit, LCD
Working Temperature : - 25°C to 70°C
Range
Communication : RS 232 C
Protected Class : IP51/IP54
Functions:
- Measure Active /Reactive energy
- Maximum Demand(MD) to know load consumption of consumer with selectable Demand integration period (DIP)
- Load profile for 30/60days
- Display Auto and Manual through push button.
- Local data down load through CMRI
- Different tampers detection and logging
- Event logging
Optional features (on demand):
*AMR LoRa /GSM/NBIoT as per the demand.
*Neutral current measurement
* Display during Power off with Push Button (hands free operation)
* Magnet detection and logging
*DLMS /COSEM complaint
* Support for Head end system integration
* Meter Data Management on server
